Hikvision DS-KIS603-P(B) Video Intercom Kit (2MP + 7" Indoor Monitor)
37000 PKR
39000 PKR
The Hikvision DS-KIS603-P(B) is a complete IP video intercom kit including a 2MP outdoor door station and a 7-inch indoor touch monitor. It supports full two-way audio, video calling, remote unlocking via mobile app, and displays live view from linked cameras. With IP65-rated door station, PoE/12V power options, and support for up to five extra monitors, it’s ideal for residential security setups.
• 2MP HD outdoor camera with wide field of view (≈ 129° × 75°)
• IR illumination for night vision (about 3 m)
• True WDR & backlight compensation
• Two-way audio with noise suppression & echo cancellation
• Outdoor unit rated IP65 for weather resistance
• Power via PoE (IEEE802.3af) or 12V DC
• Indoor unit: 7″ capacitive touch screen, 1024×600 resolution
• Supports Wi-Fi & Ethernet networking for the indoor monitor
• Supports up to 5 additional indoor monitors (6 total)
• Alarm inputs (4) and relay output for door unlocking
• MicroSD support (indoor) up to 32 GB
• System Platform: Embedded Linux

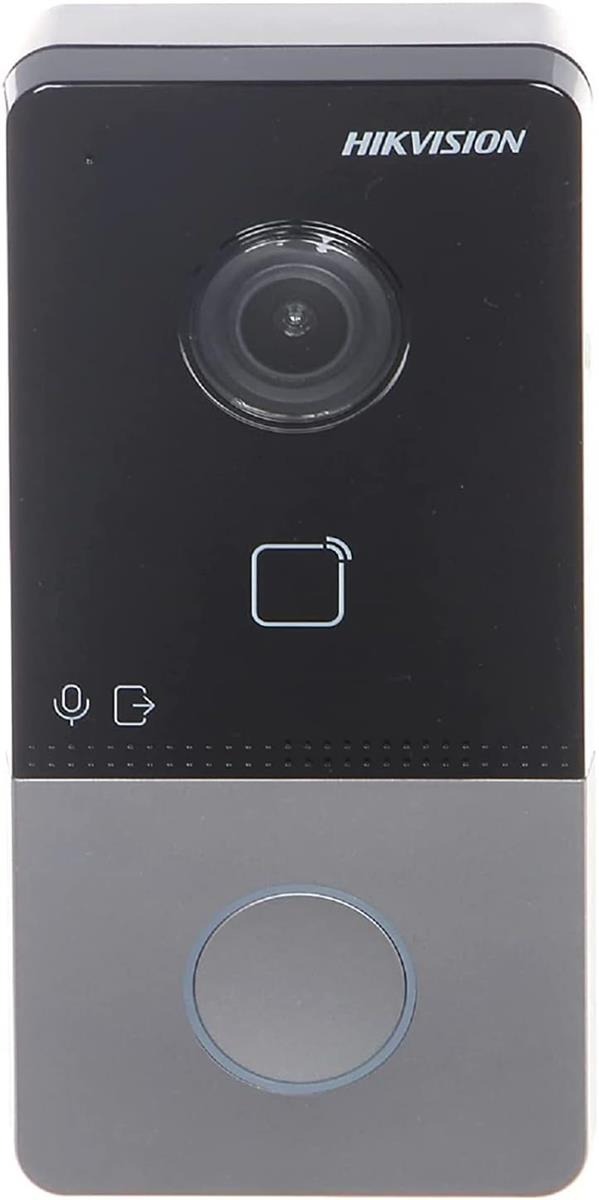

• Outdoor Station:
– Flash: 32 MB
– RAM: 128 MB
– Camera: 2MP HD
– Night Vision: IR supplement up to ~3 m
– Field of View: ~129° horizontal, ~75° vertical
– Video Compression: H.264
– Streams: Main 1080p@30fps, sub 720p@25fps
– Network: 10/100 Mbps Ethernet
– RS-485: 1
– Alarm inputs: 4
– Tamper switch: 1
– Protection: IP65
– Working Temp: -40 °C to 53 °C
– Power: PoE or 12V DC (<10 W)
– Dimensions: 138 × 65 × 27 mm

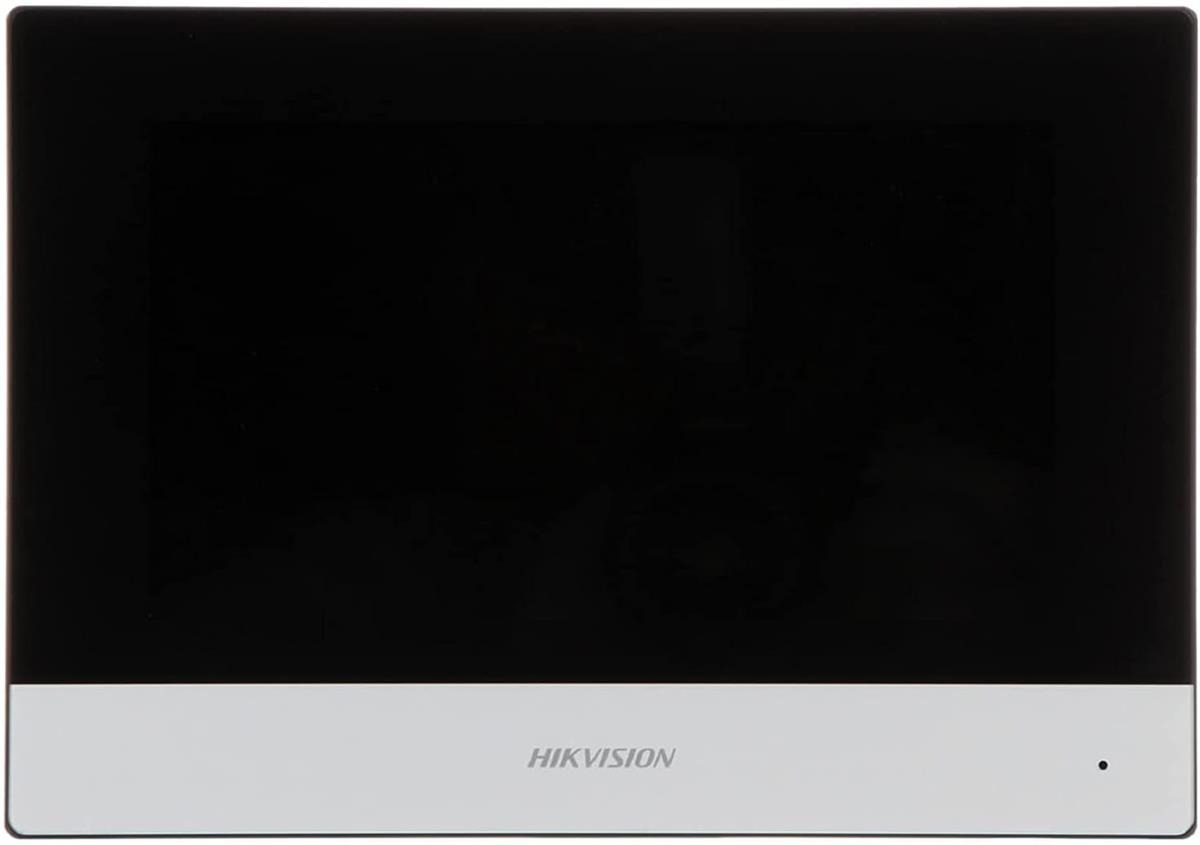

• Indoor Monitor:
– Display: 7″ TFT, 1024 × 600
– Memory: 128 MB, Flash: 32 MB
– Network: Ethernet & Wi-Fi b/g/n
– Alarm inputs: 8
– Relay outputs: 2
– TF Card support: up to 32 GB
– Working Temp: -10 °C to 55 °C
– Power Consumption: ≤ 6 W
– Dimensions: 200 × 140 × 15.1 mm
