Tenda TEF1110P-8-63W 10-Port 10/100 Mbps PoE Switch with 8 PoE Ports

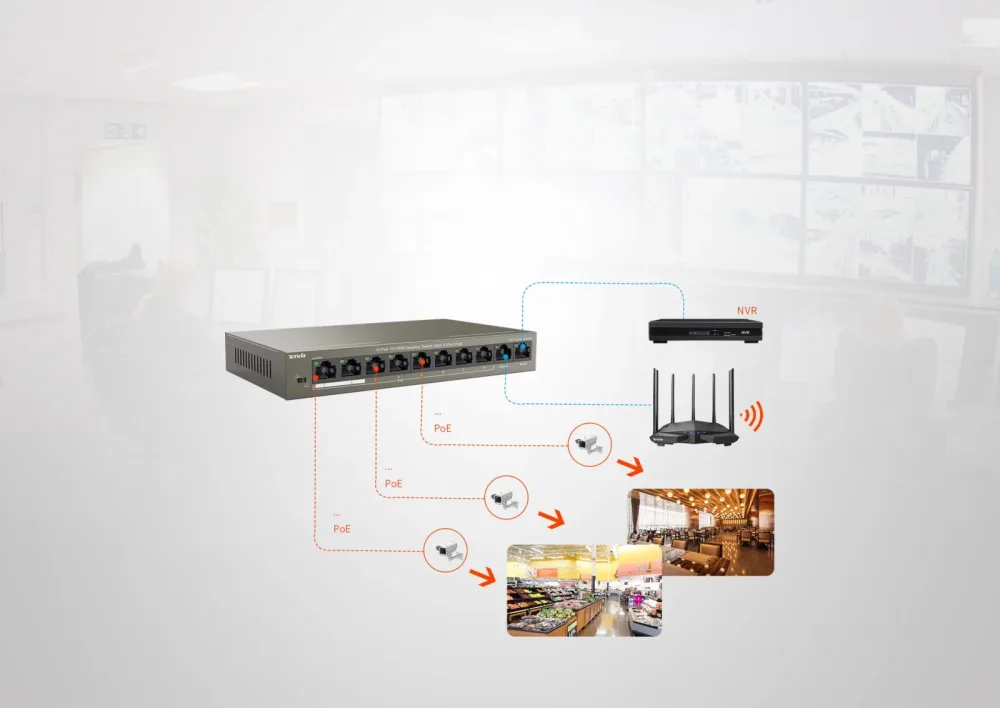

Eight PoE ports with a 63 W budget: enough to run eight small IP cameras, which is why this is the switch that usually goes in alongside a camera order rather than a plain gigabit one.

The Tenda TEF1110P-8-63W is an unmanaged PoE switch designed for surveillance networks and small to medium installations. It features 8 data + power (PoE) ports, 2 uplink-only ports, smart features like extend mode and one-key VLAN, and protection against lightning surges. With support for IEEE 802.3af/at and a total PoE budget of up to 63W, it’s ideal for powering IP cameras and access devices.

What it does

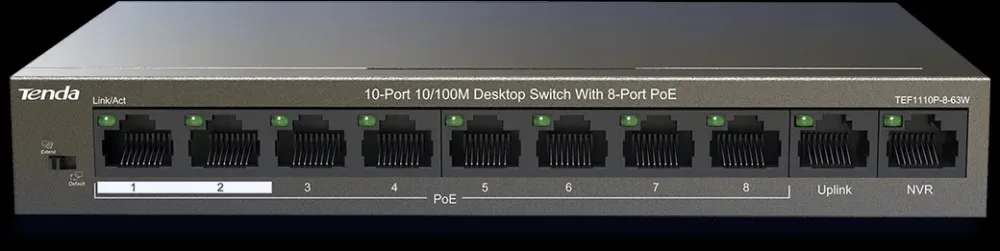

• 8 × 10/100 Mbps PoE ports (data + power), and 2 × 10/100 Mbps uplink ports
• Supports IEEE 802.3af / 802.3at PoE standards

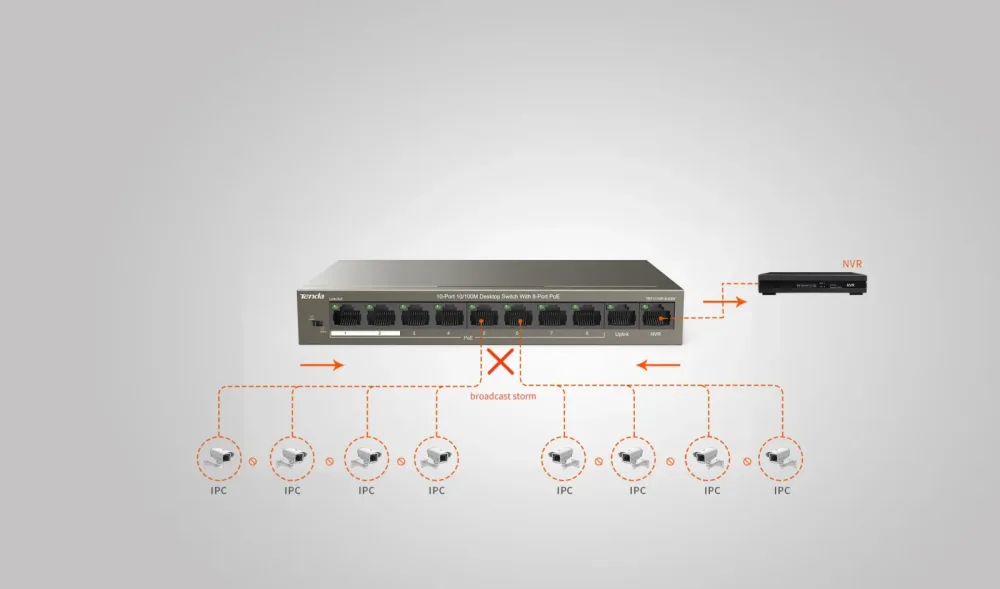

• One-key VLAN for port isolation

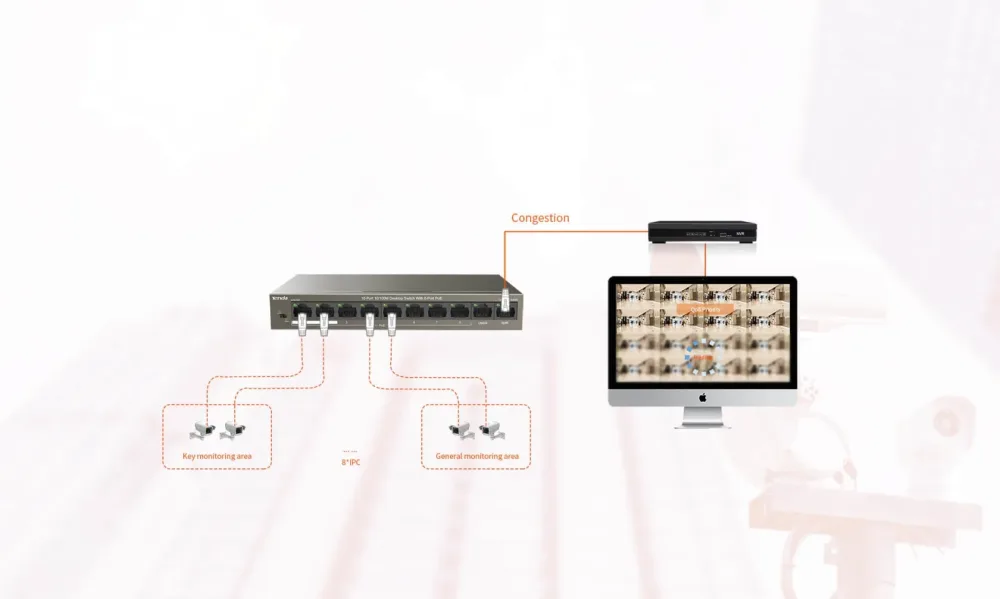

• QoS support for prioritizing traffic

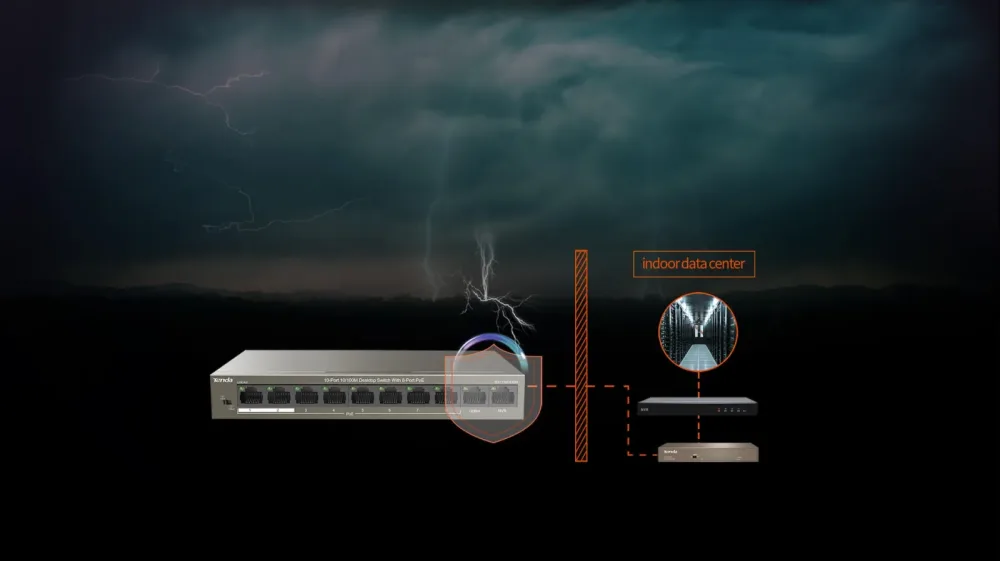

• 6 kV lightning protection and PoE overload / short-circuit protections
• Plug-and-play, desktop or wall-mountable
• 8 × 10/100 Mbps PoE ports and 2 × uplink ports
• Complies with IEEE 802.3af/at PoE standards
• 63W total PoE power budget
• Supports long-distance transmission up to 250m (Extend Mode)

Who it suits

A switch is what you add when you have more things to plug in than ports to plug them into — cameras, a recorder, a couple of PCs, an access point. A PoE model also powers the cameras down the same cable, which removes an adapter and a socket at every camera position.

Fitting it

It needs a socket and somewhere ventilated to sit; a cabinet, a shelf, or a wall bracket. If you are powering cameras from it, add up their wattage before you buy — the total PoE budget is the number that decides how many cameras one switch can actually run, not the port count.

Warranty and delivery

Warranty on this item is Tenda's, handled through their authorised service centre — dotpk.pk does not give a warranty of its own, and the product page and your invoice both say so. Where a claim is genuinely ours (a wrong or damaged item) we cover the courier both ways; otherwise the delivery charge is yours. A return has to be raised within 24 hours of delivery and needs an unboxing video, which is why we ask you to film opening the parcel. Orders inside Lahore placed before the afternoon cut-off go out for same-day delivery. Everywhere else in Pakistan is courier, and cash on delivery or bank transfer are both accepted. If you are buying several units for a site, contact us for wholesale rates rather than ordering at the listed price.
